1220mm Plastic de Raadsproductielijn 700KG/H van pvc met 80mm Schroef

1220mm Plastic de Raadsproductielijn 700KG/H van pvc met 80mm Schroef
1220mm Plastic de Raadsproductielijn 700KG/H van pvc met 80mm Schroef

Grote Afbeelding :  1220mm Plastic de Raadsproductielijn 700KG/H van pvc met 80mm Schroef

Productdetails:
Plaats van herkomst: China
Merknaam: AORUI
Certificering: CE UL CSA
Modelnummer: SJSZ80X156
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: één reeks
Prijs: Negotiable
Verpakking Details: Berokingshout, film, pallet, enz. of volgens de eis van de klant.
Levertijd: 30 Dagen
Betalingscondities: T/T L/C
Levering vermogen: 10 reeksen per maand

1220mm Plastic de Raadsproductielijn 700KG/H van pvc met 80mm Schroef

beschrijving
ModelNumber: SJSZ80X156 Voorwaarde: Nieuw
Certificaat: Ce-Certificaat Schroefdiameter: 80mm
Plaats van origineel: China Merknaam: Aorui
Voltage: 380V 50HZ Garantietijd: 1 jaar
Schakelaar: Het merk van Schneider Schroefmateriaal: 38Cr MOAIA
Hoog licht:

1220mm Plastic de Raadsproductielijn van pvc

,

80mm de Uitdrijvingslijn van de Schroef Plastic Raad

,

Plastic Raadsproductielijn 700KG/H

1220mm PVC Crust Foam Board Extrusion Line , PVC Foam Board Making Machine With CE Certificate



Brief introduction:

1. Our PVC foam board machine includes the special Twin-screw extruder, mould and other auxiliary machines. We use twin-screw extruder with compact structure, superior performance.

2. Besides the screw and barrel and die are designed by our company and made in world famous manufacturers. And use the high-performance alloy steel for professional processing. So the machine has the advantages of uniform plasticizing, stable extrusion, high output, and long life. We can supply you the best material formulation and all of technology.



Description of pvc board machine:
1. Hot-cooling mixer,
capacity 500-700KG/H, driven by 75KW motor adjust by ABB inverter.
self friction & electric heating for hot mixer, water cooling for the cooling mixer.
tank wall made by 8mm thickness stainless steel.
2. Conical double screw extruder with screw loader
The conical double screw extruder equipped with parallel twin screw feeder, which can avoid the PVC powder material block.
Screw feeder equipped with the limit switch, which used to guarantee the material loading equal and continuously. or equip with vacuum loader, which can help solve the PVC powder dust problem for the client.


Suggestions:
Making 5-25mm thickness free foam board, just need 80/156 conical double screw extruder,
Making 25-45mm thickness free foam board, need 92/188 conical twin-screw extruder
Making 5-25mm thickness skinning foam board, need 80/156 extruder + 65/132 extruder
Making 25-45mm thickness skinning foam board, need 92/188 extruder + 80/156 extruder
3. Extrusion and forming mold + calibration table + cooling bridge
The extruder die adopts T type design, board thickness adjustable, 5-25mm thickness board just one set T-die, 25-45mm thickness foam board need another set T-die.
Forming die(sizing die) up and down move by hydraulic, cooling by water, cycling cooling water.
4. Eight-roller haul-off
Eight group rubber hauling roller, driven by the 5.5KW motor, guarantee enough powder for foam board processing.
Front of haul-off add a small device can give protect film laminated on the board.
Behind the haul-off, equipped 4 cutting saw, up two is fixed to cutting the not good side of the foam board, center distance 4'. Down two cutter moveable, used to division the foam board to small wide when required, like 2' + 2'.
5. Cutter
Used to cut the board into wanted length, usually 8'.



Technical parameters:

Machine model  Semi-crusted foam board Co-extrusion foam board
Product width 1220 mm 1560 mm 2050 mm 1220 mm
Product thickness 5~20 mm 8~18 mm 8~15 mm 5~20 mm
Extruder specification SJSZ-80/156 SJSZ-92/188 SJSZ-92/188 SJSZ-80/156+SJSZ-65/132
Output 400 kg/h 550 kg/h 550 kg/h 500 kg/h
Main machine power 75 kw 132 kw 132 kw 75+37 kw

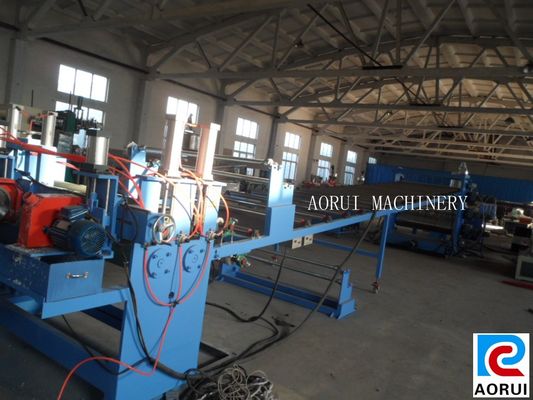

Machine display:

1220mm Plastic de Raadsproductielijn 700KG/H van pvc met 80mm Schroef 0



1220mm Plastic de Raadsproductielijn 700KG/H van pvc met 80mm Schroef 1
